Trailer & Truck Parts

HUTCH Trailer Parts

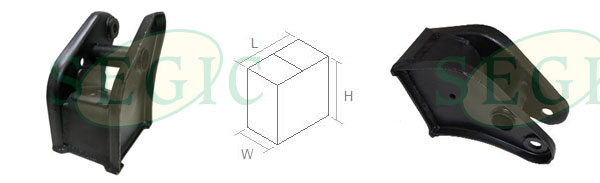

front hanger
PART NO. PART DES. LENGTH WIDTH HEIGHT WEIGHT
SGFH 10500 FRONT HANGER 10.500" 6.125" 10.625" 9.280KG

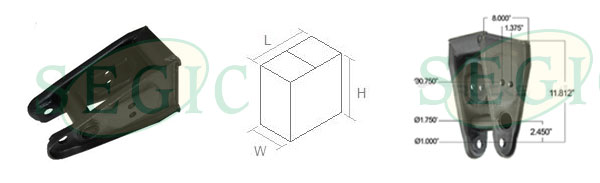

center hanger
PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGRH 85000 CENTER HANGER 8.500" 5.625" 13.75" 7.120KG

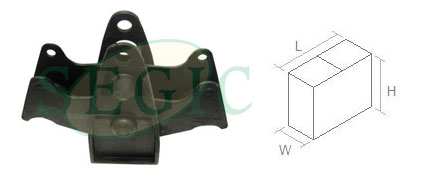

PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGHR 16000 HANGER & ROCKER ASSY. 16.00” 7.00” 12.5” 19.05KG
hanger&rocker
PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGBD 11750 BALL MOUNT DROP 2” 11.75” 2.5” 3.75” 2.66KG

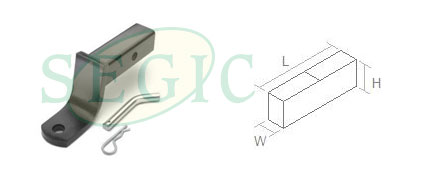

ball amount 2 drop
ball mount 2 drop 2 hitch ball

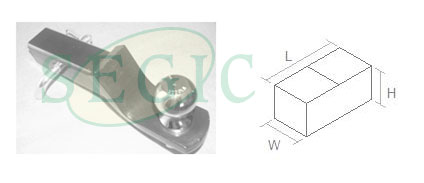

PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGBD 11250 BALL DROP 2” W/HITCH BALL 11.25” 5.5” 5” 4KG

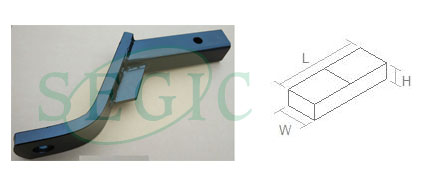

ballmount4
PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGBD 12375 BALL DROP 4” 12.375” 4.5” 2.37” 3KG

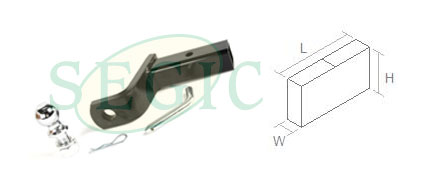

PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGBD 12500 BALL DROP 4” W/HITCH BALL 12.50” 2.5” 6.5” 4.350KG
ballmount4hitch
PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGHB 46270 HITCH BALL 2” 4.625” 2” 1.5” 1.12KG

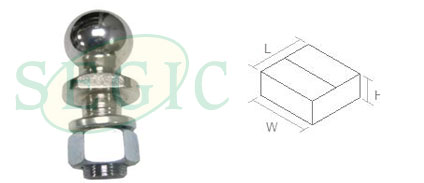

hitchball17
PART NO. PART DES LENGTH WIDTH HEIGHT WEIGHT
SGHB 50000 HITCH BALL 2 5/16” 5” 2.5” 2.5” 1.420KG
hitchball2516shank

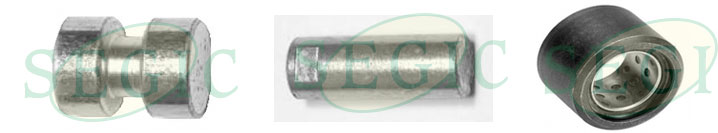

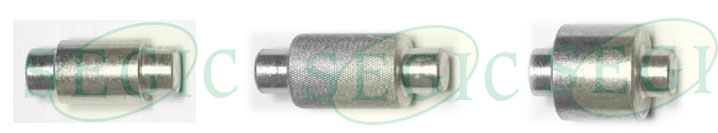

breakrollers1
breakrollers1
PART NO. LENGTH LARGE DIA. SMALL DIA
SGBR 27320 2 7/32” 1 1/4” 1”
SGBR 21417 2 1/4” 1 7/16” 1”
SGBR 21411 2 1/4” 1 7/16” 1”
SGBR 25321 2 1/4” 1 1/4” 1 1/4”
SGBR 27811 2” 7/8” 1
SGBR 27321 2 7/32” 1 9/32” 1 1/4”
SGBR 25324 2 5/32” 1 1/4” 1 1/4”
SGBR 24164 2 41/64” 1 1/2” 1 25/64”
SGBR 23161 2 3/16” 1 5/16” 1 5/8”
SGBR 22164 2 21/64” 1 5/16” 1 5/8”
SGBR 27164 2 17/64” 1 1/2” 1 5/8”
SGBR 13811 1 3/8” 1 1/4” 3/8”
SGBR 11140 1” TO 1 3/8” 1 1/4”-1 1/2” 3/4”
SGBR 17161 1 7/16” 1 1/2” 3/4”
SGBR 25321 25/32” 1 5/8” 1 5/6”
SGBR 11415 1 1/4” 1 5/8” 1 5/16”
SGBR 34214 3/4” 2 1/4” --

PINS

PART NO. DIA. L TYPE FORM
SGHP 1020 25 155
SGHP 1650 25 109 BR
SGHP 1640 25 119
SGHP 1170 25 136
SGHP 1580 25 136
SGHP 1561 30 146
SGHP 2370A 30 221.5
SGHP 1320 30 123 S
SGHP 2290 30 148
SGHP 0060 30 157
SGHP 2150 30 158
SGHP 1730A 38 151
SGHP 2150 38 158
SGHP 2260 38 160
SGHP 1370 30 140 S
SGHP 1270 30 146
SGHP 1260 30 146
SGHP 1280 30 146
SGHP 1800 30 148
SGHP 2270 30 148
SGHP 1560 30 138

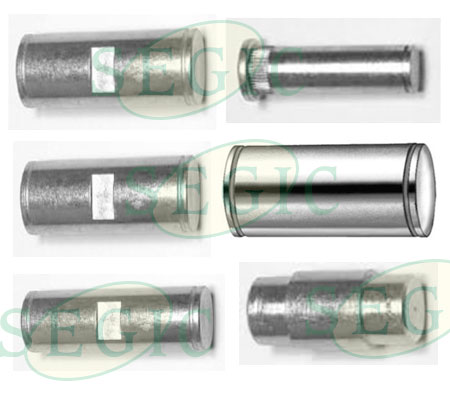

anchorpins
PART NO. LENGTH SMALL DIA LARGE DIA.
SGAP 14334 1/4” 3 3/4” --
SGAP 34214 3/4” 2 1/4” --
SGAP 12340 1” 2 3/4” --
SGAP 11423 1 1/4” 2 3/4” --
SGAP 21423 2 1/4”- 2 3/8” 31/32”-1 1/16” 1 1/8”-1 1/8”
SGAP21415 2 1/4” 1 5/16” 1 1/2”
SGAP 21132 2 11/32” 1” 1 1/4”
SGAP 11428 2 3/8” 1 1/4” --
PART NO. DIA. L TYPE FORM
SGNP 5006 28 108
SGNP 5003 28 119
SGNP 0002 28 131



SGNP 0400 28 139
SGNP 5008 30 133.5
SGNP 5001 30 141
SGNP 2002 30 144
SGNP 1000 35 160
SGNP 5007 28 113
SGNP 5002 28 114
SGNP 0200 30 139
SGNP 0400 28 118
SGNP 2001 30 129
SGNP 0110 35 165
SGNP 1001 28 112
PART NO. DIA. L TYPE FORM
SGMP 4134 28 116

SGMP 3533 28 116
SGMP 0078 28 116
SGMP 0079 30 138
SGMP 9263 30 138
SGMP 0384 32 152
SGMP 9258 32 154
SGMP 3611 28 120
SGMP 4570 28 128
SGMP 4416 30 140
SGMP 2570 32 154
SGMP 2017 32 158
SGMP 2018 32 175
SGMP 5281 28 117




SGMP 5277 28 135
PART NO. DIA. L TYPE FORM
SGIP 0041 25 112
SGIP 1493 25 116
SGIP 0053 25 120
SGIP 0431 32 136
SGIP 0310 32 137
SGIP 0660 32 165
SGIP 0341 25 114
SGIP 0170 25 115
SGIP 0180 28 126
SGIP 0321 28 131
SGIP 1743 25 116
SGIP 0120 32 162
SGIP 1043 25 118
SGIP 0160 25 115
SGIP 2043 25 125
SGIP 1740 25 122
SGIP 0010 32 185
SGIP 1011 32 190
SGIP 0012 32 160
GENUINE PART NO. DESCRIPTION SIZE
SGSP 5145 FRONT SPRING PIN M 28X4X166
SGSP 8681
SGSP 8680 BUSH FOR ABOVE M 28X36.1X90
SGSP 0129 O RING M 23.5X65
SGSP 0546 FRONT SMALL M 28X153
SGSP 7748
BUSH FOR ABOVE M 36X76
SGSP 5149 FRONT SQ.TYPE M 36X4X130
SGSP 7849 BUSH FOR ABOVE M 36X76
SGSP 5148 REAR SPRING PIN M 36X4X168
SGSP 6410
SGSP 5036 BUSH FOR ABOVE M 36X4X46.1X90
SGSP 5148 SPRING PIN M 36X4X181
SGSP 2333
SGSP 5698 BUSH FOR ABOVE M 36X46.1X102
SGSP 2931 O RING M 31.5X6.5

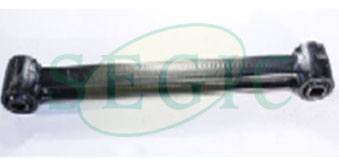

RIGID TORQUE ARMS

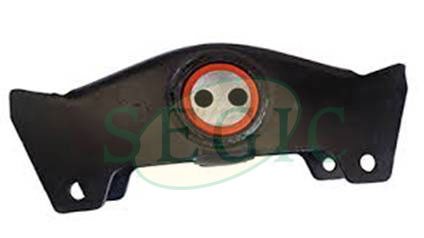

EQUALIZER BOLT

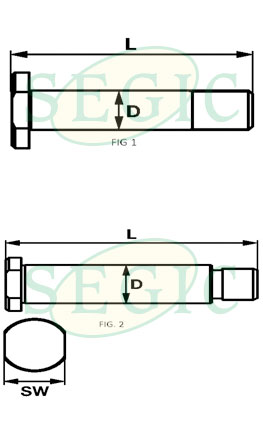

SR NO. REFERENCE NO. PART NAME FIG NO L D d SW THREAD REMARK DRAWING
1 HUTCHES 719-02 HEX BOLT 1 127 25.4 - 35 14 UNS
2 HUTCHES 00719-03 137
3 HUTCHES 00719-04 157
4 HUTCHES 00759-00 2 115 15   25 18 UNS
5 HUTCHES 007016-01 157
6 HUTCHES 10562/37-03 FLANGE NUT/HEX NUT 25.4-14UNS/15-18UNS

SR NO. REFERENCE NO. PART NAME FIG NO L D d SW THREAD REMARK DRAWING

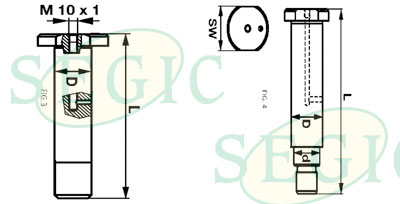

7. BPW 1771640 THREADED BOLT 1 207 42 - 70 M 42*3
8. BPW 1771625 THREADED BOLT 2 247 50 60
9. BPW 1771629 THREADED BOLT 257 60 70
10. BPW 1771635 THREADED BOLT 265
11. BPW 1771620 THREADED BOLT 285
12. BPW 1771705 THREADED BOLT 313 M 48*3
13. BPW 1771626 THREADED BOLT 377 50 - 60 M 42*3
14. BPW 1771627 THREADED BOLT 404
15. BPW 1771607 THREADED BOLT 421
16. BPW 1771606 THREADED BOLT 459 60 70 M 48*3
17. BPW 1771641 THREADED BOLT 3 207 60 50 M 42*3
18. BPW 1771628 THREADED BOLT 4 245
19. BPW 1771630 THREADED BOLT 274
20. BPW 1771630 THREADED BOLT 381 70 60 80
21. BPW 1771617 THREADED BOLT 313 M 48*3
22. BPW 5220/73 LOCK NUT M 42*3 / M 48*3
23. BPW 6802 GREASE NIPPLE 10*1/71412
SR NO. REFERENCE NO. PART NAME FIG NO L D d SW THREAD REMARK DRAWING
24. BPW 3401522 SCREW M 30*120 / SW46
25. BPW 3401515 M 30*150 / SW46
26. BPW 3401521 M 30*160 / SW46
27. BPW 3401524 M 30*170 / SW46
28. BPW 3401530 M 30*180 / SW46
29. BPW 3401520 M 30*190 / SW46
30. BPW 3401523 M 30*210 / SW46
31. BPW 3401603   M 36*155 / SW55
32. BPW 3401604   M 36*185 / SW55
33. BPW 3401605   M 36*215 / SW55
34. BPW 3401606   M 36*235 / SW55
35. BPW 26015/522085   M 30/36, SW46/55
SR NO. REFERENCE NO. PART NAME FIG NO L D d SW THREAD REMARK DRAWING

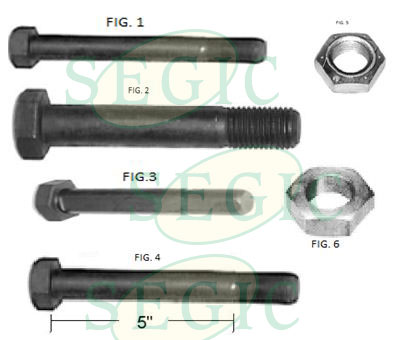

36. BINPP 0050-73 EQUALIZER HEX BOLT   165 25.4 - 35 12 UNS
37. BINPP 0012-37 NUT 25.4*12
38. BINPP 0050-75 TORQUE ARM BOLT   120 22 - 30 14 UNS
39. BINPP 0012-36 NUT 22*14
40. REYCO T54392 TORQUE ARM BOLT 2 177 25.4 - 35 14 UNS
41. REYCO T2243 TORQUE ARM BOLT 2 171
42. REYCO 1721001 TORQUE ARM BOLT ONE SIDE FLAT 3 182
43. REYCO 10033-01 TORQUE ARM BOLT 1 140   30 9 UNS
44. REYCO 0001-14 EQUALIZER BOLT 4 160   35 14 UNS
45. REYCO NL3016 NUT 5 22*9
46. REYCO T5495/274 NUT 6 25.4*14

Sizes can be made according to customer's requirement
